HOTAS QR Slider Sim Rig Mount

15 December 2022 | Hits: 2063 | Downloads: 51 | Sim Rigs | Free | Digital

0
Shares

  • 0.0
    0 votes

Featured Brands

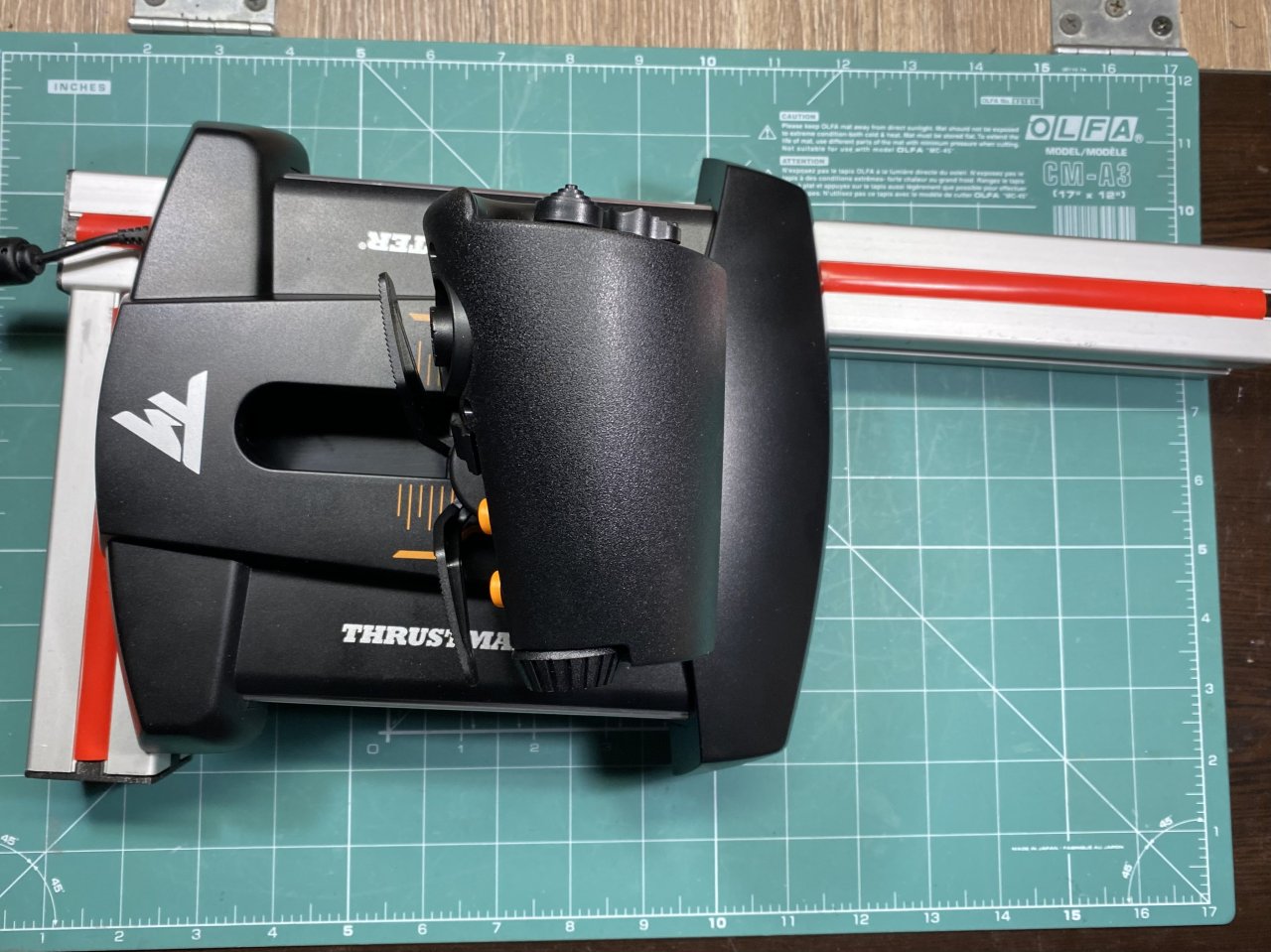

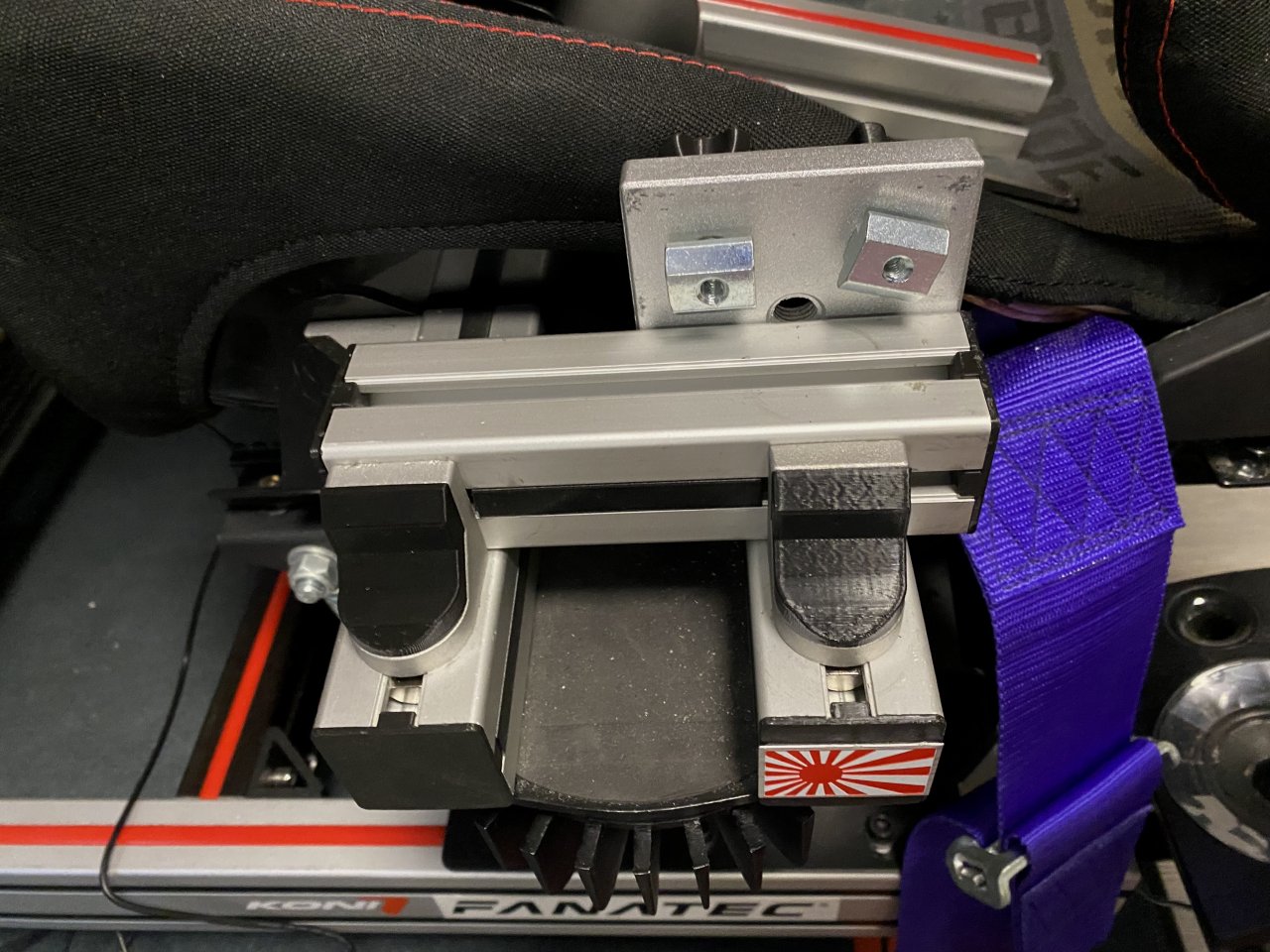

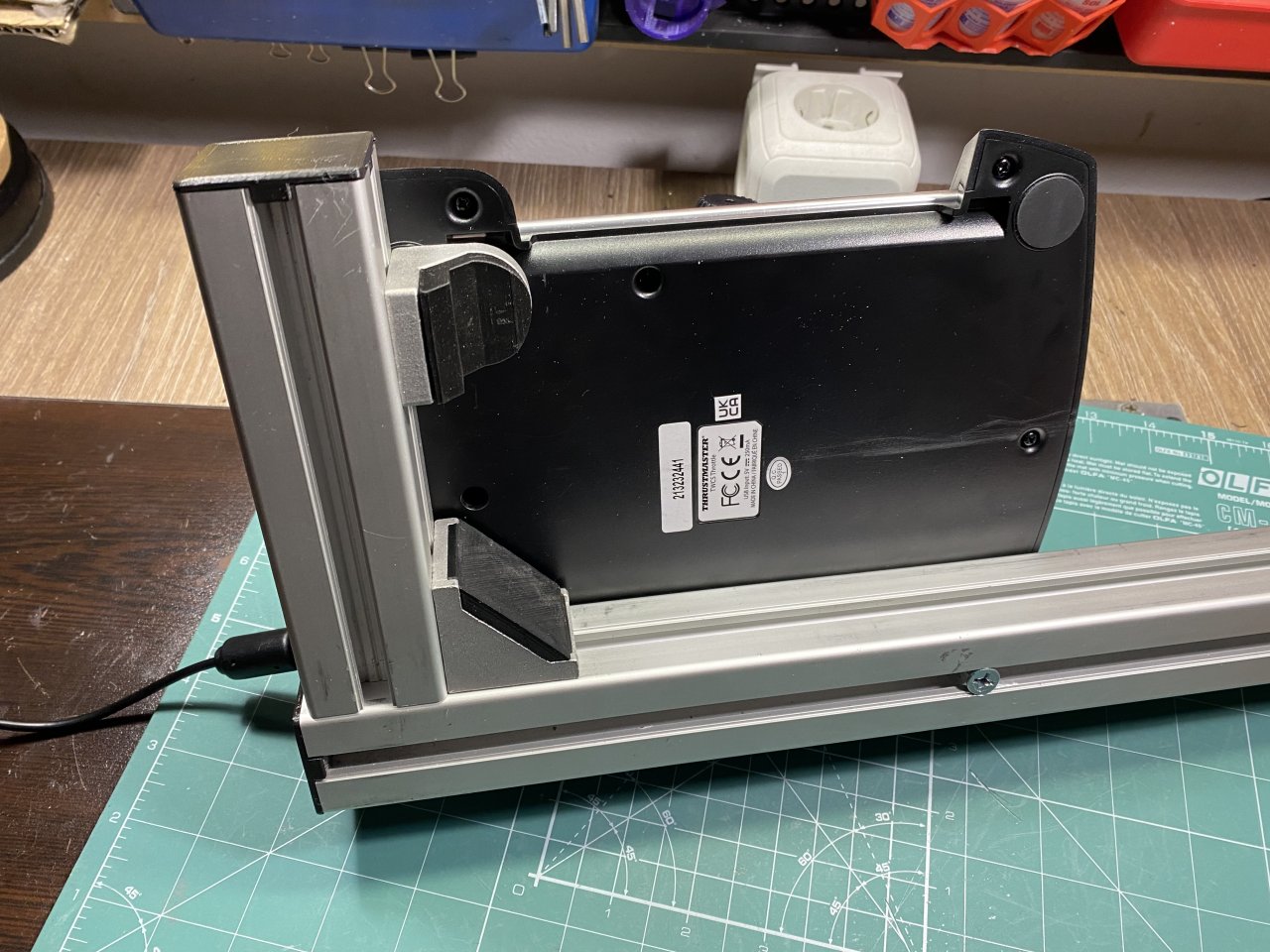

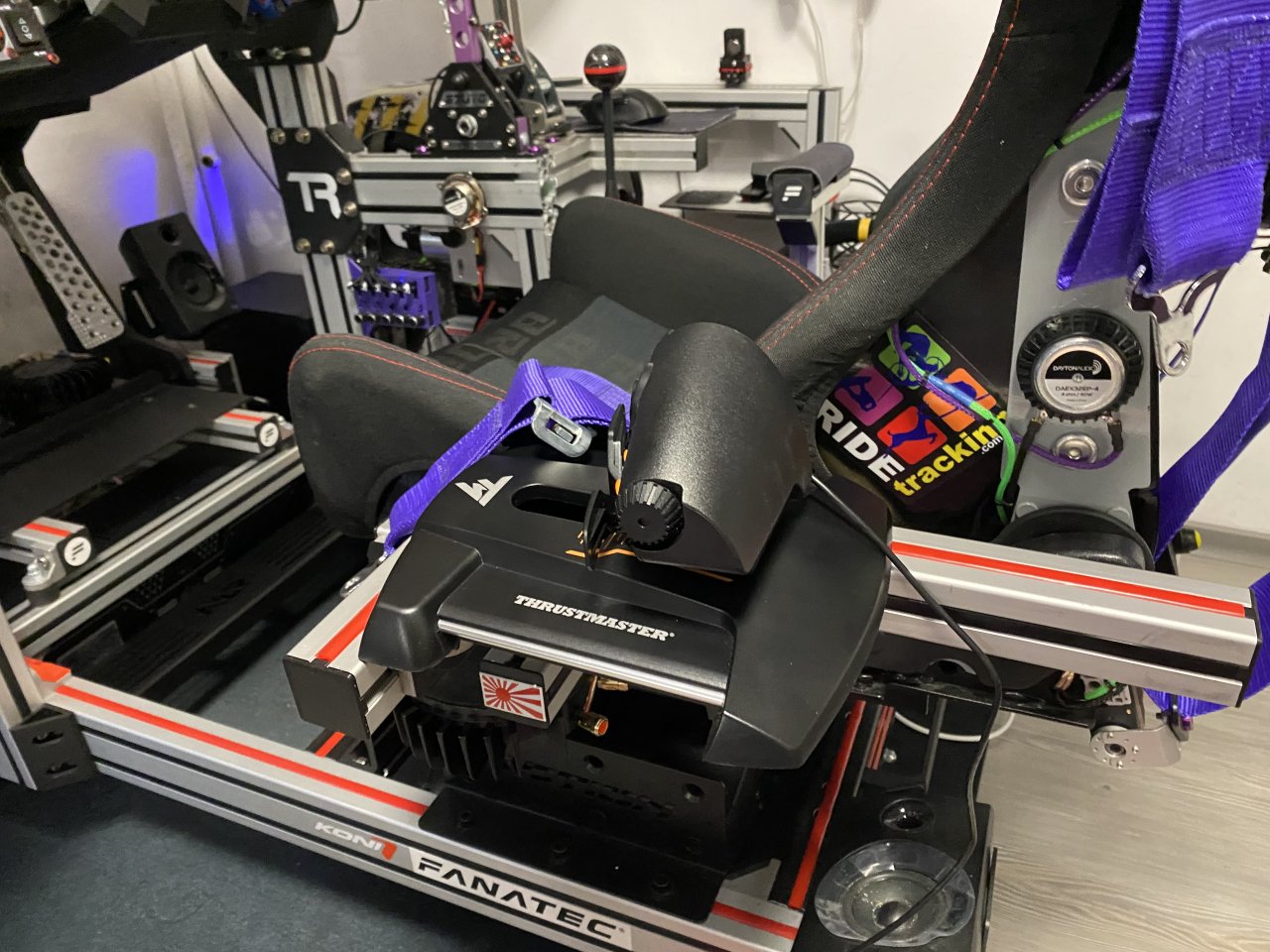

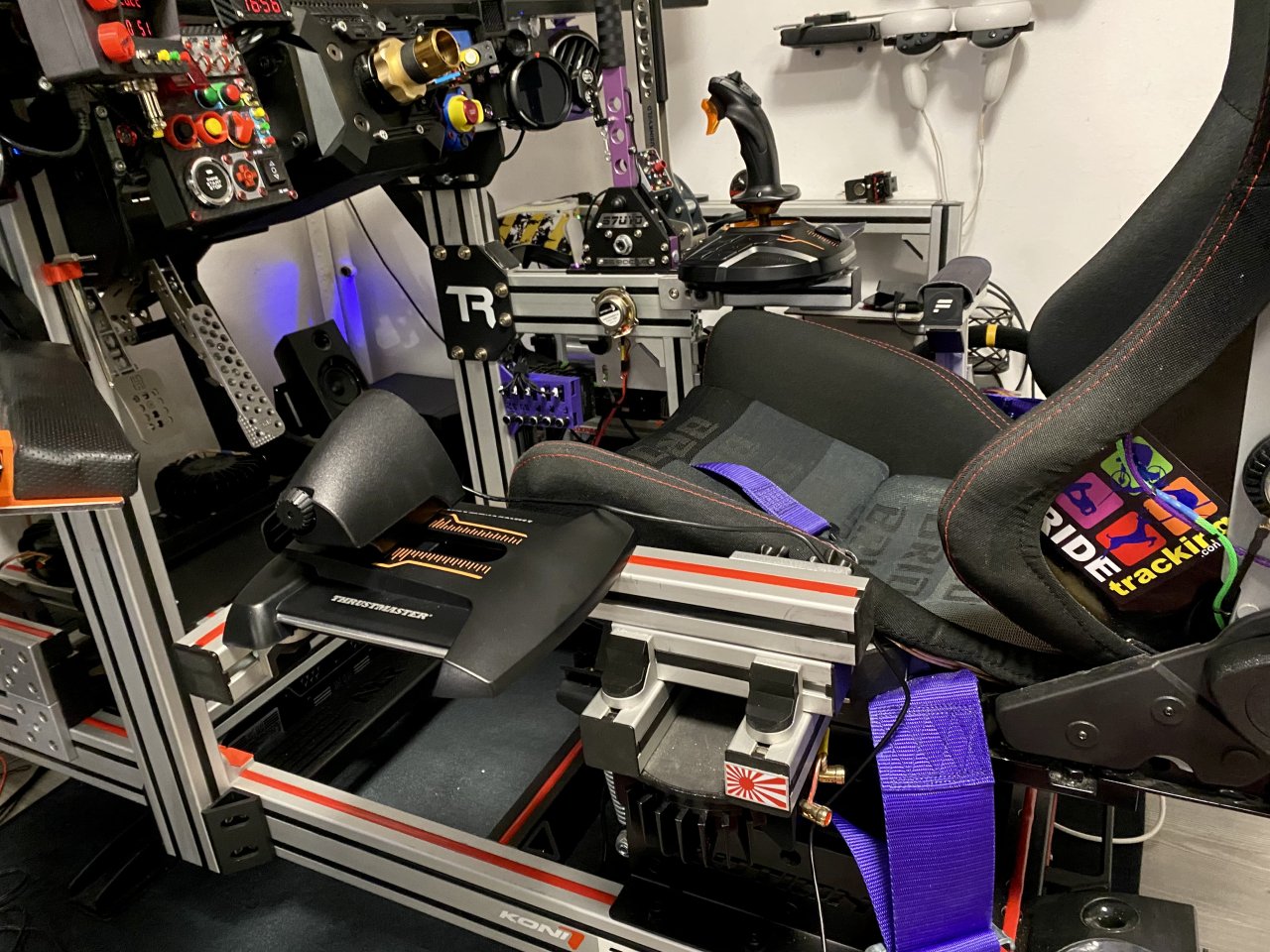

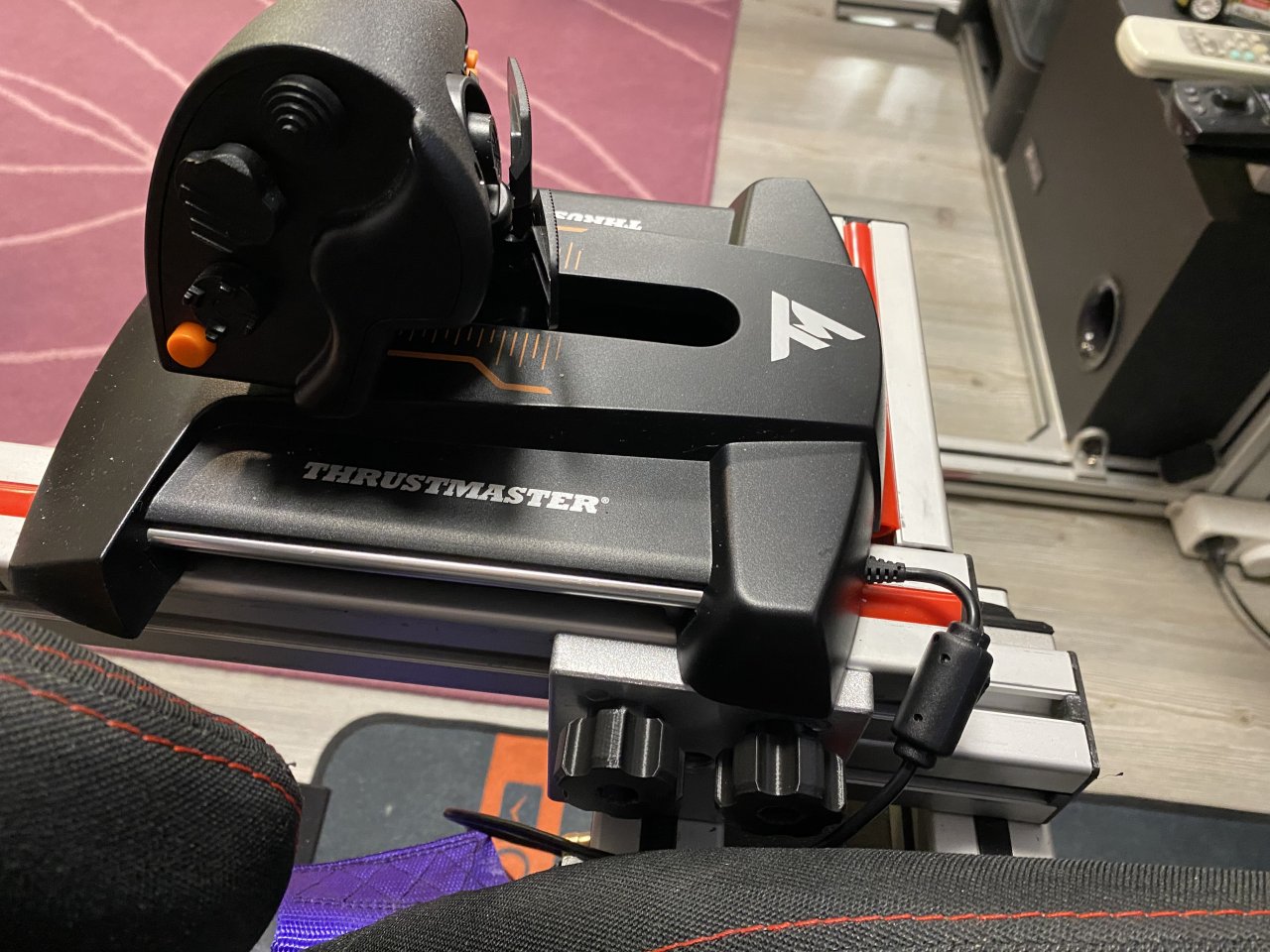

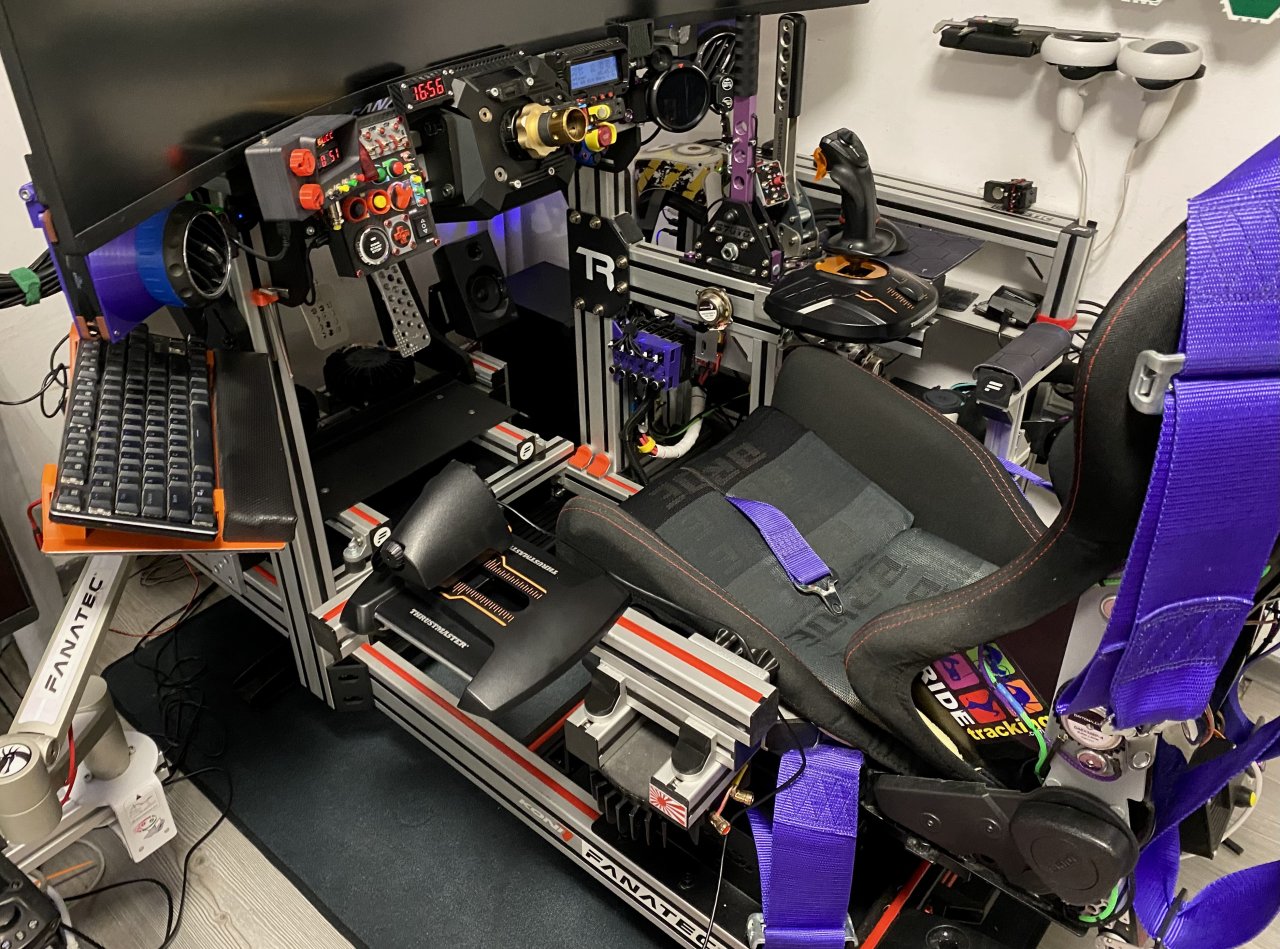

    • Simple slider mechanism for mounting throttle with quick release. I made it out from spare 4040 series profiles but will work well with 3030 too. Support frame is mounted to the seat with right angle brackets. The throttle slider is 40cm long.

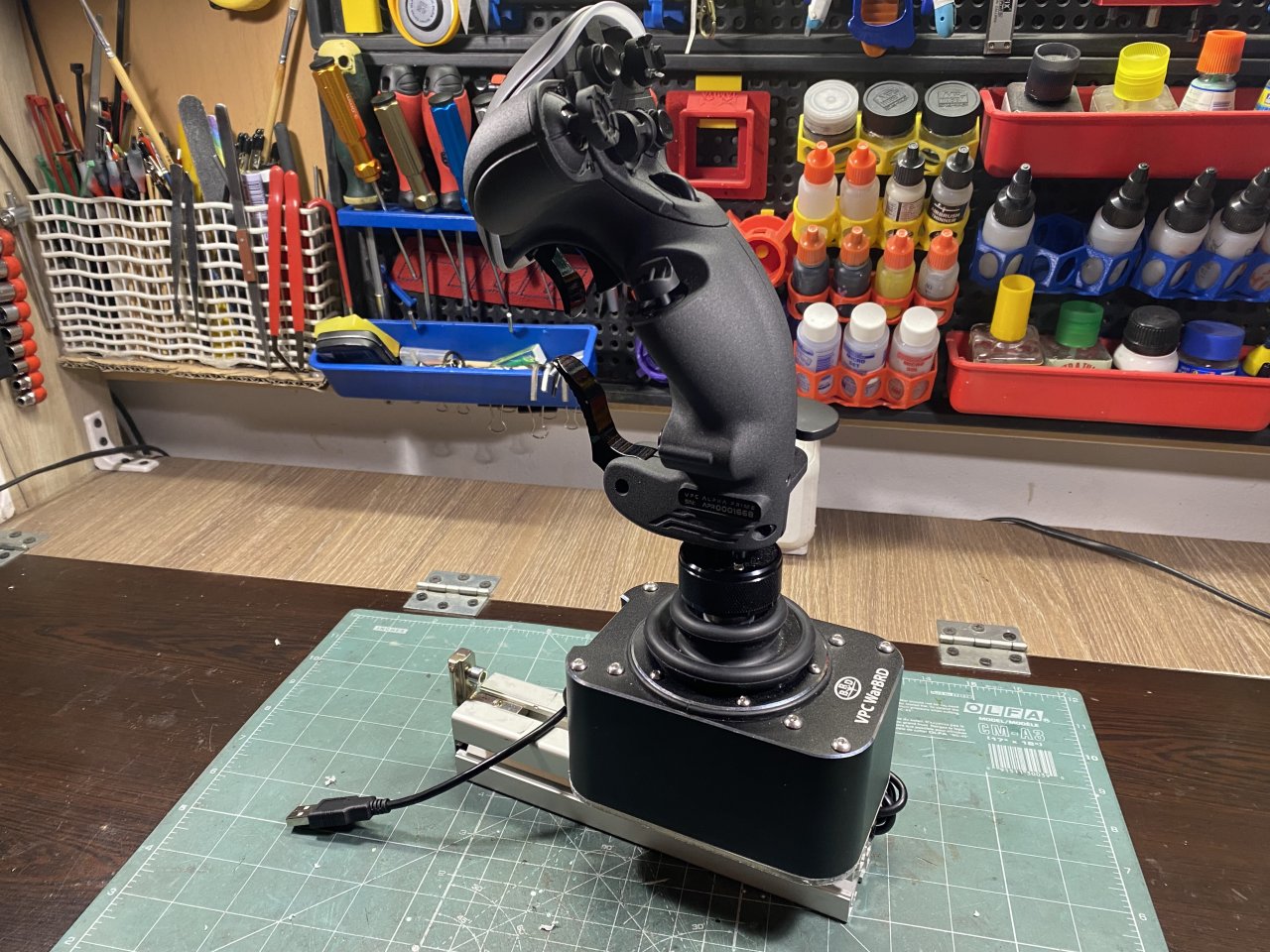

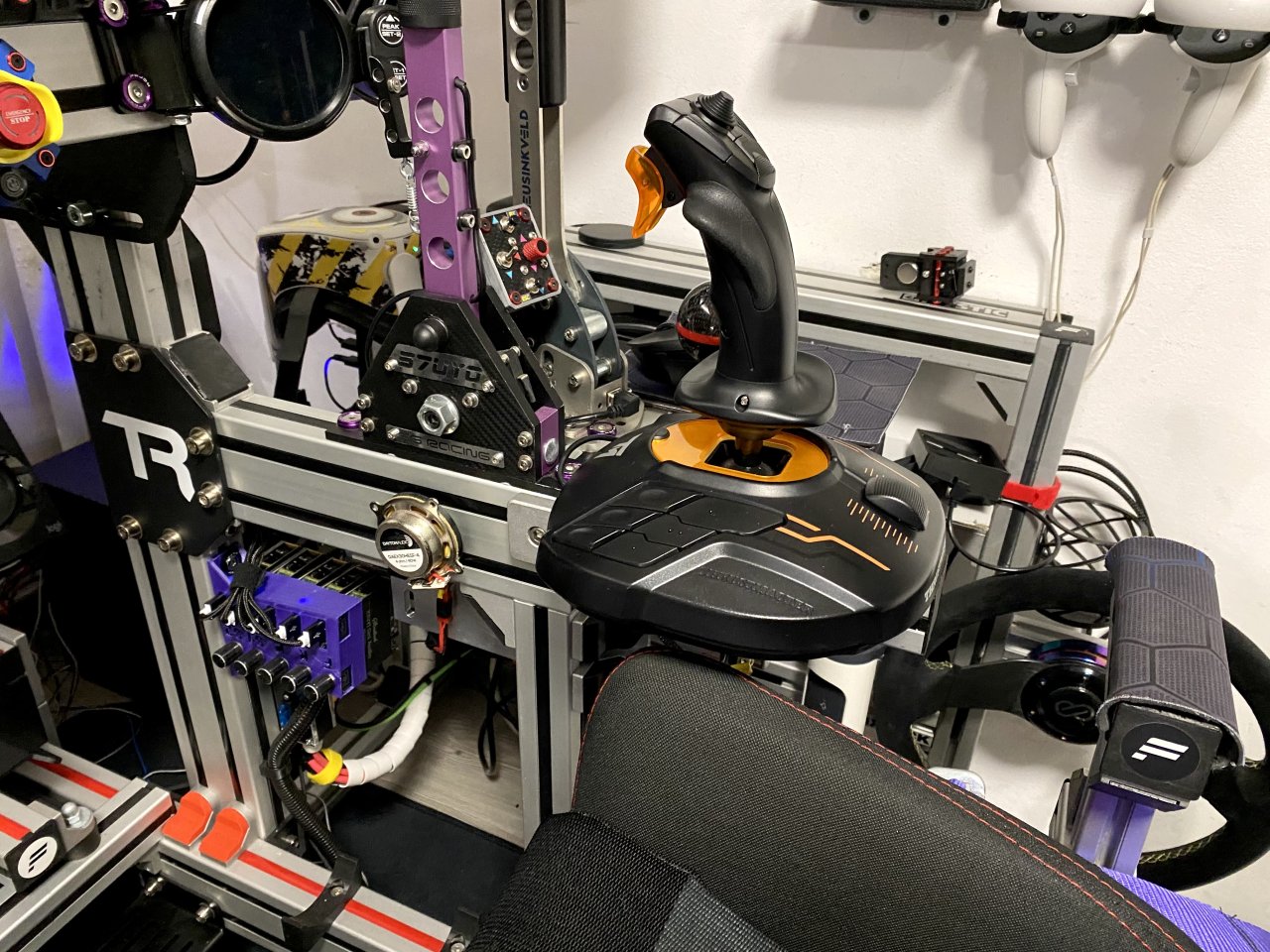

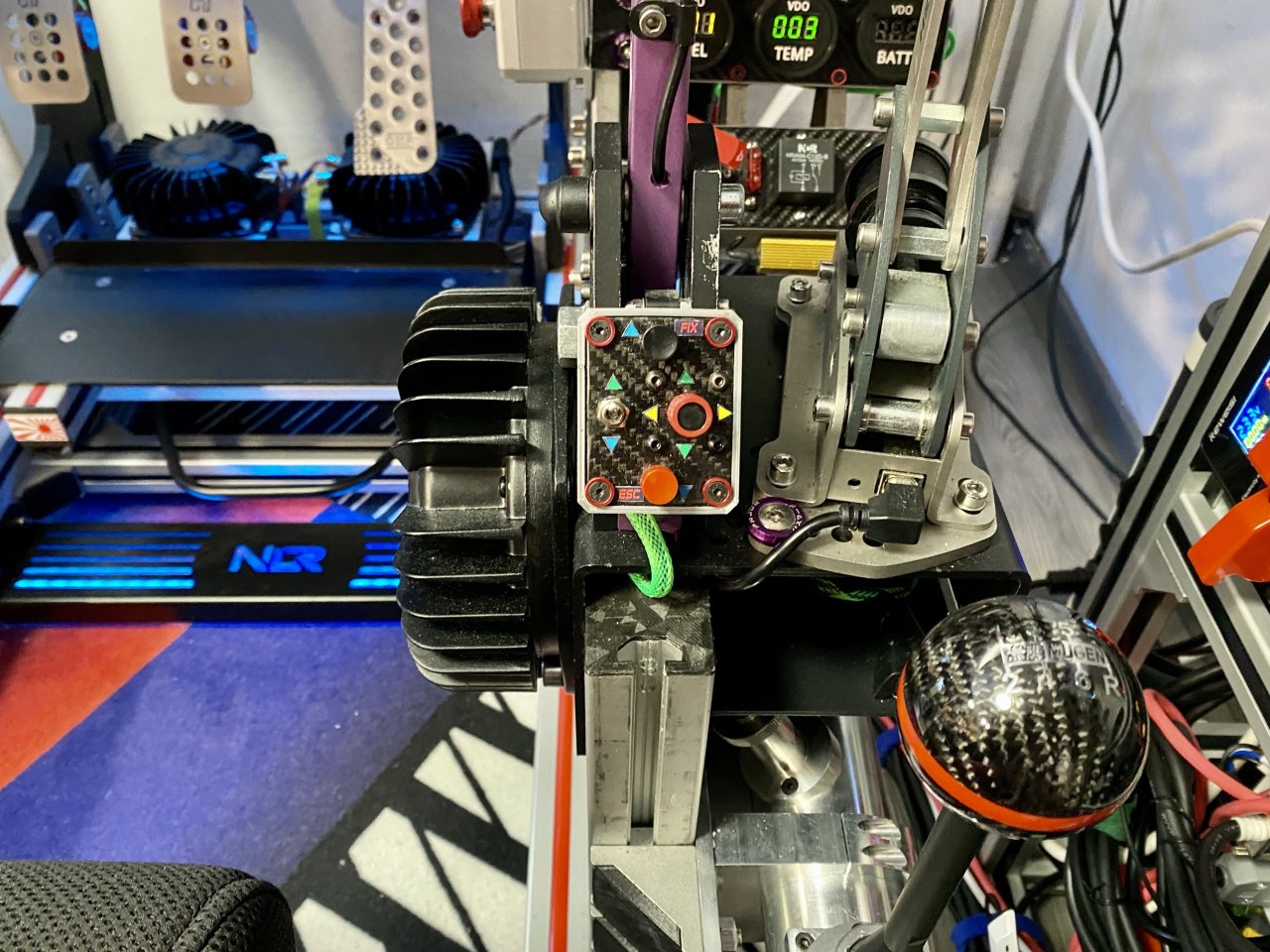

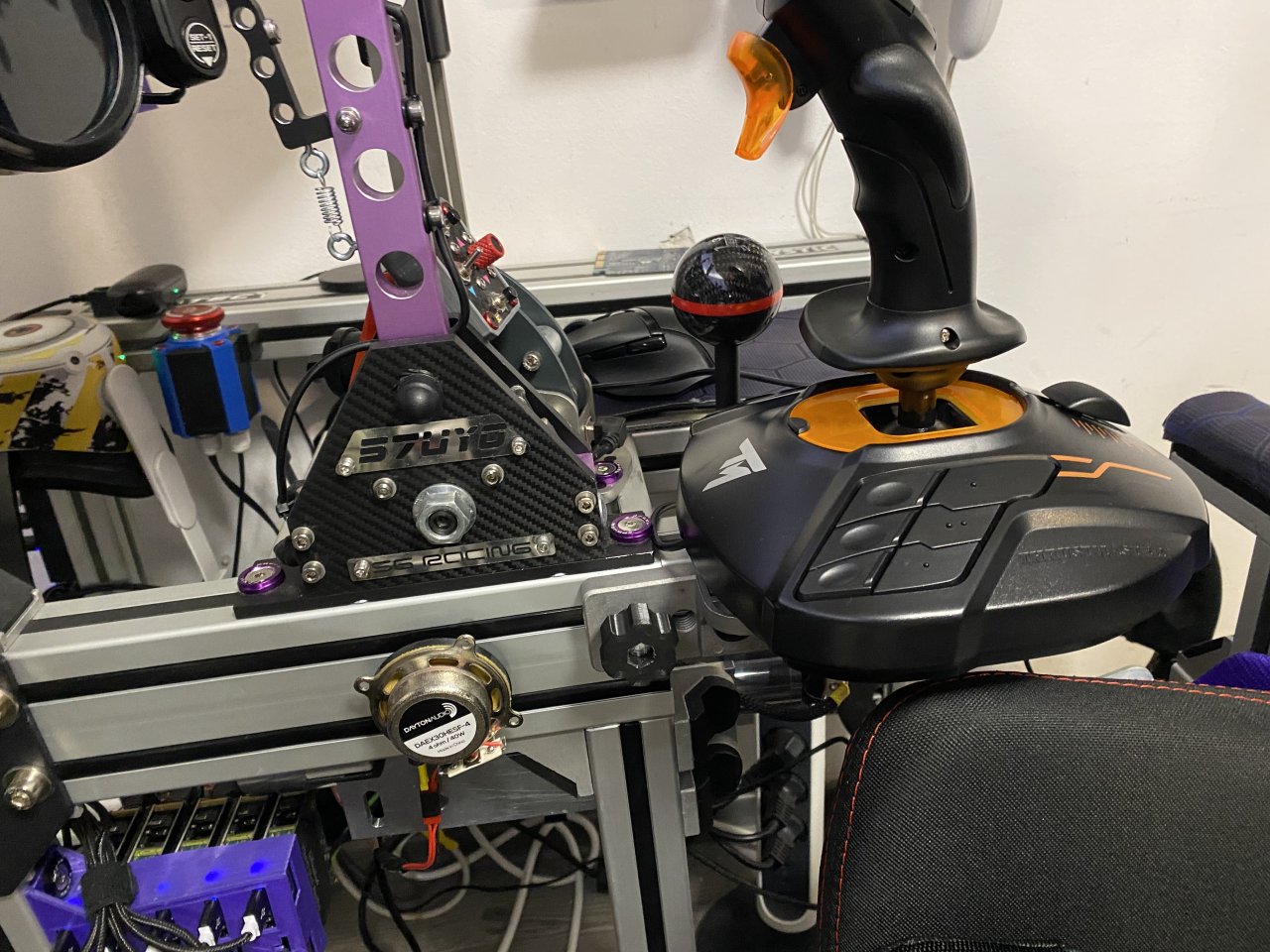

      Joystick mount is pretty simple as well, relies only on one bolt to be mounted to the shifter cluster.

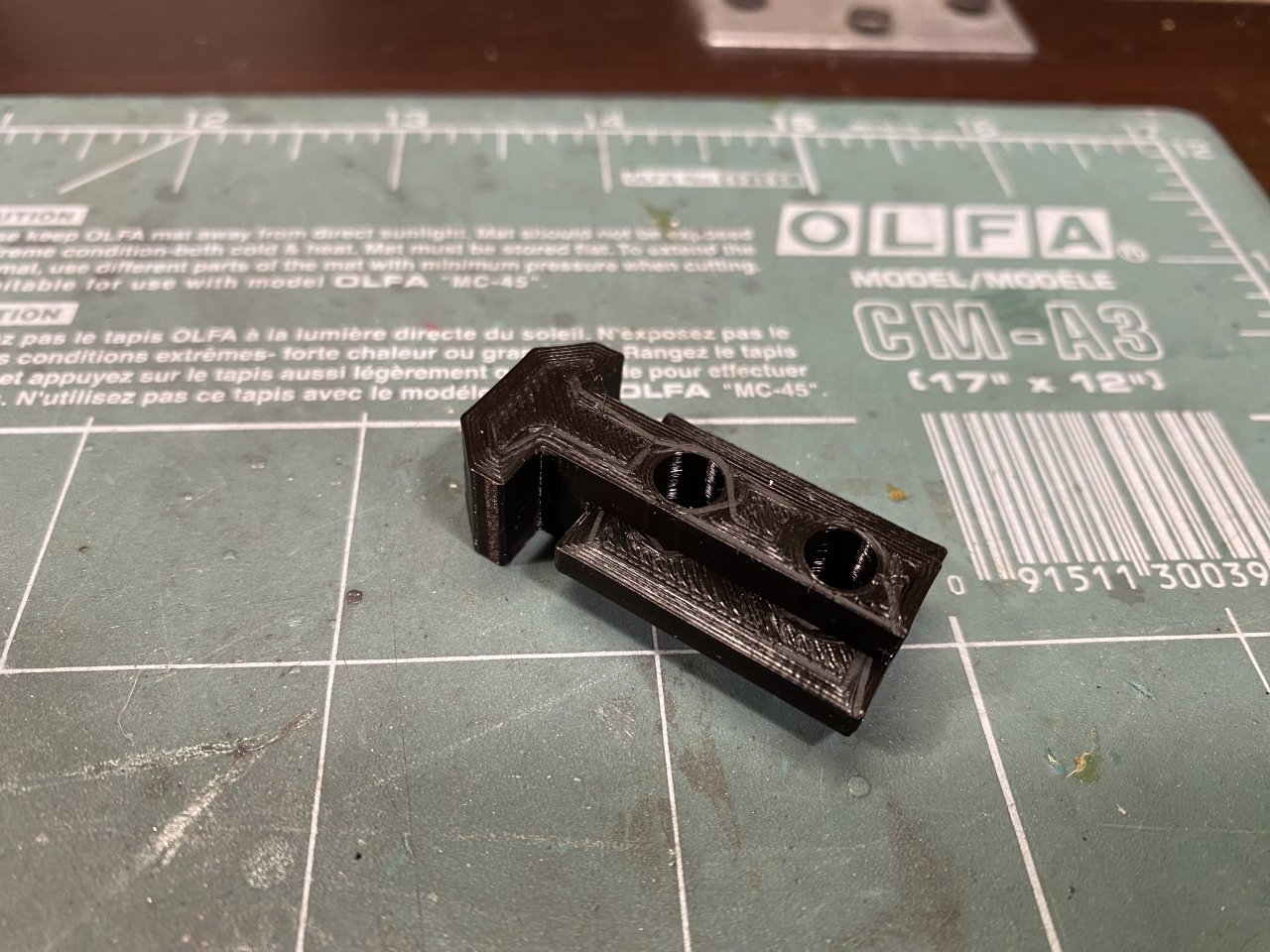

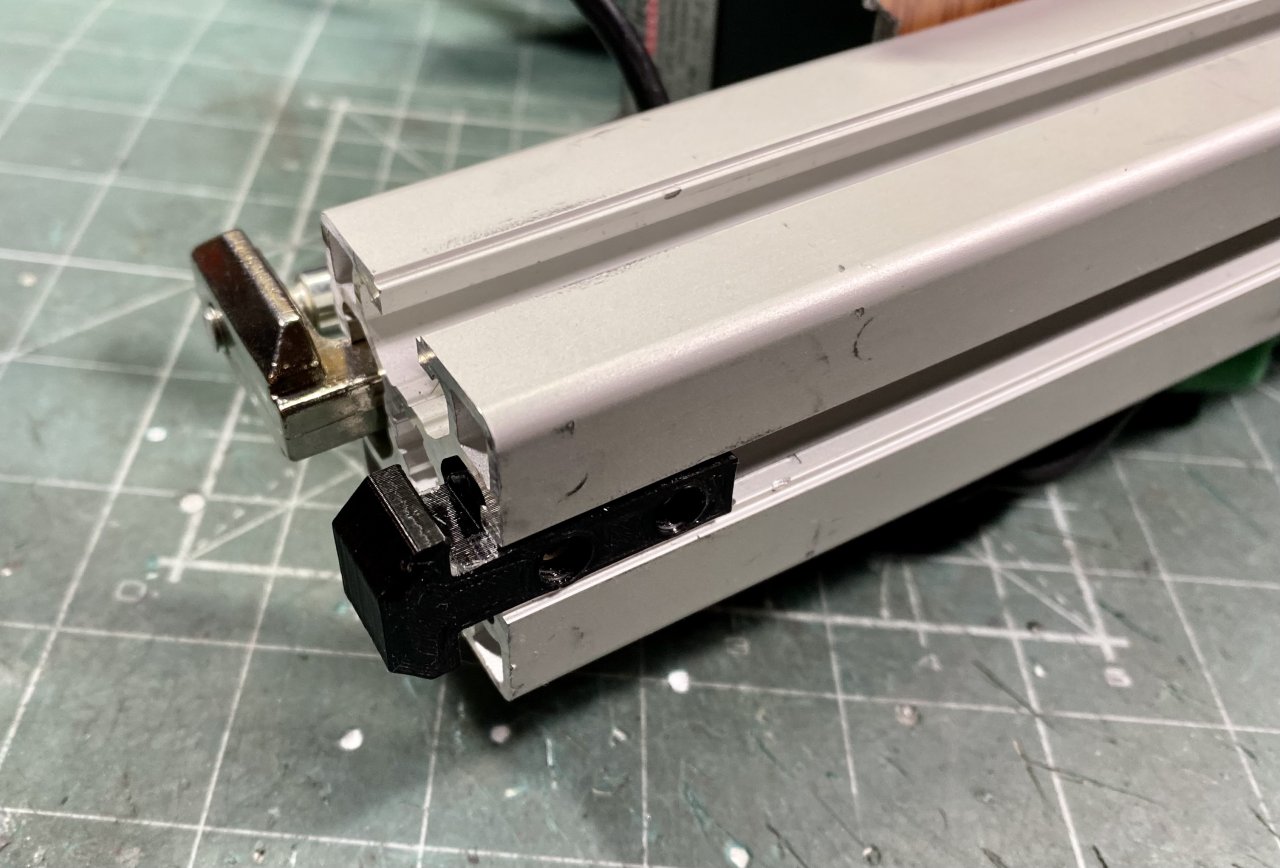

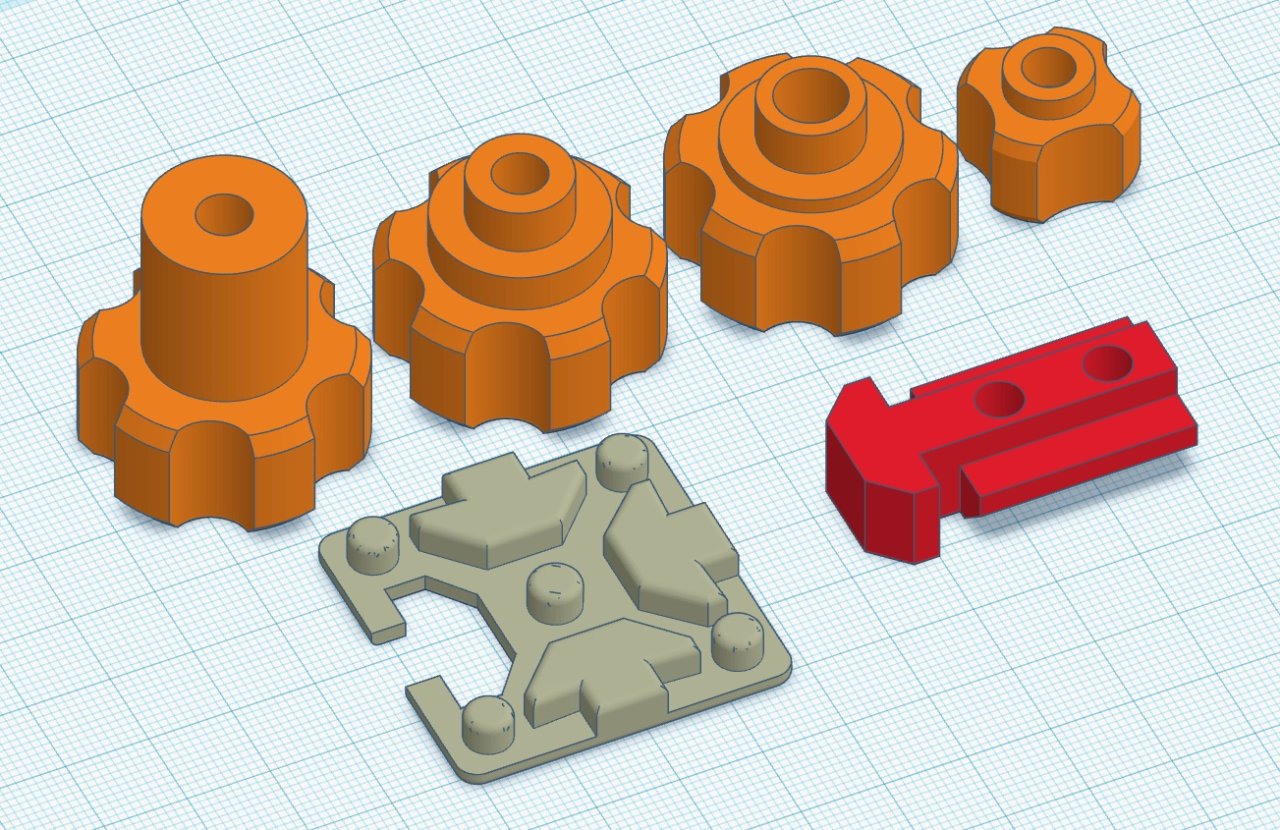

      Bonus content: 3D printed part and 4040 end cap used in my newest HOTAS QR system for easy mounting to the vertical support of the shifter cluster. The printed parts is used as stabilizer on the bottom of the 4040 platform.

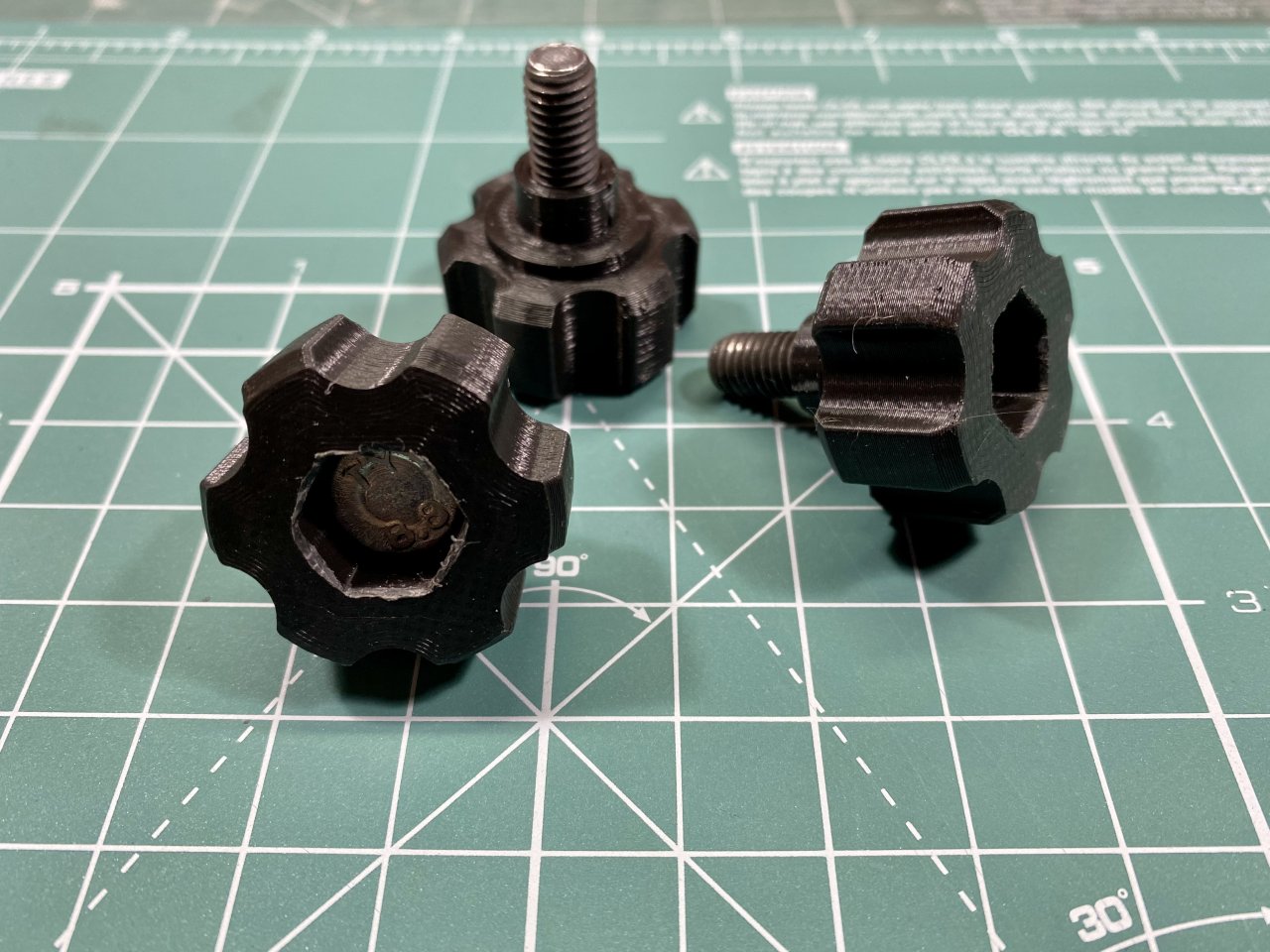

      Thumbscrews used in the slider are M6, M8 for the joystick. Profile endplates are used as connectors.



    • Parts needed:

      1. Alu Profile 40 series End Connector Plate (both 8040 and 8080)s:  https://vallder.com/en/c/alu-profile-accessories/end-connection-plate-detail

      2. Alu Profiles 4040: https://vallder.com/en/c/alu-profile/alu-profile-40x40-detail

      3. Right Angle bracket: https://vallder.com/en/c/alu-profile-accessories/right-angle-bracket-detail

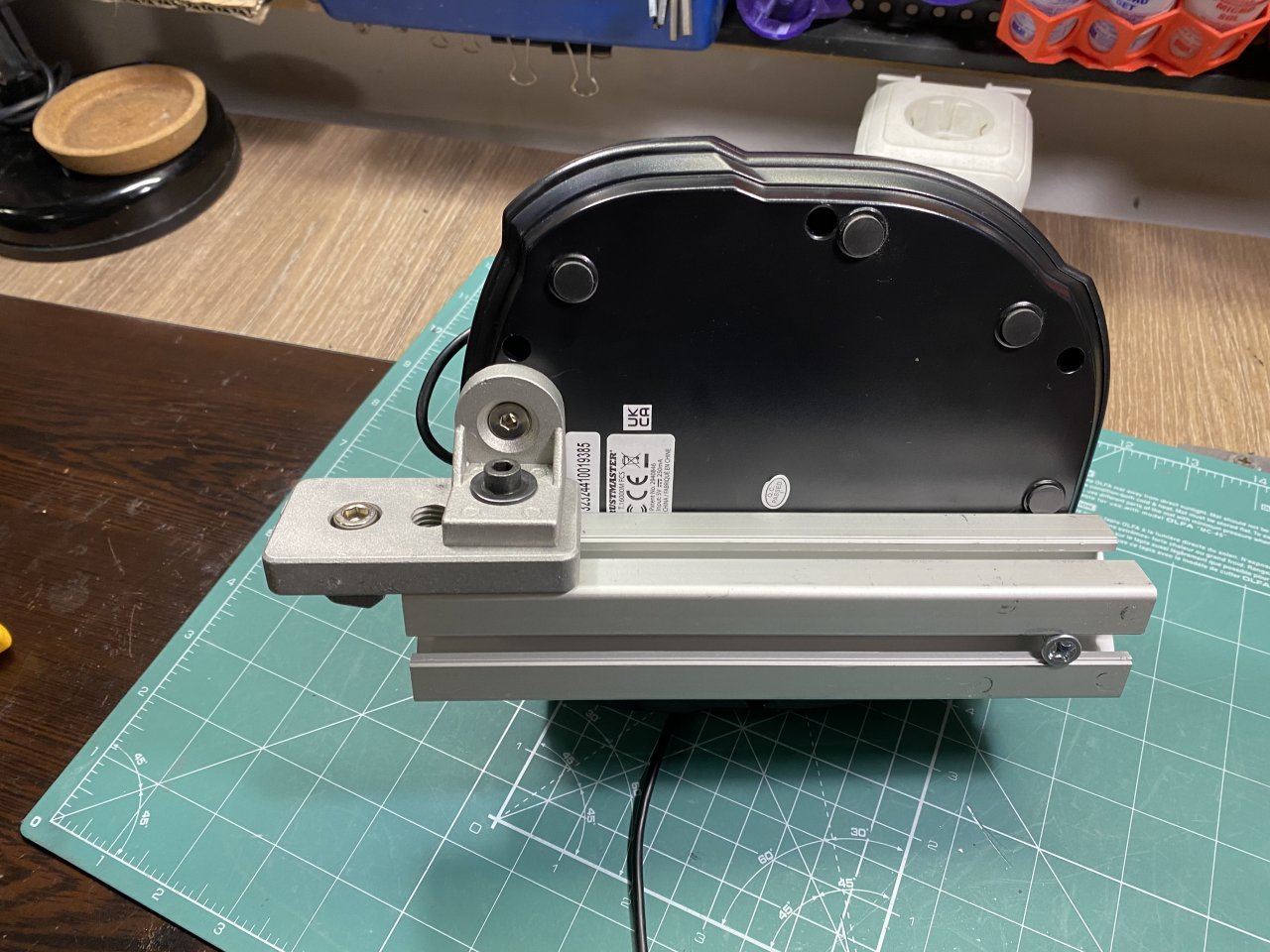

      4. L-Angle Bracket for the joystick slider for easier mounting: https://vallder.com/en/c/alu-profile-accessories/l-angle-bracket-detail

      5. M6x25 and M8x20 HEX bolts for the big and M6x15 for the small thumb screws

      6. M5 stopper screws for the stabilizer - can be taken from the L-Angle bracket

      7. M5x15 screws for easier operation of the L-Angle bracket



      The long M6 thumbscrews fit well in the openings of the End Connector Plates.

    • Comments (4)

      Leave a comment

      Please login to leave a comment.

    License

    This work is licensed under a Creative Commons Attribution 4.0 International License
    .
