Simgrade VX-Pro OMP Pedal Adapter

Pedals · by Stuyo · 22 Aug 2024

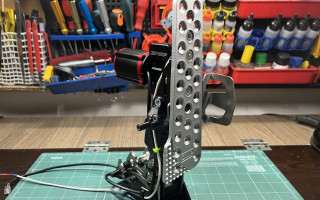

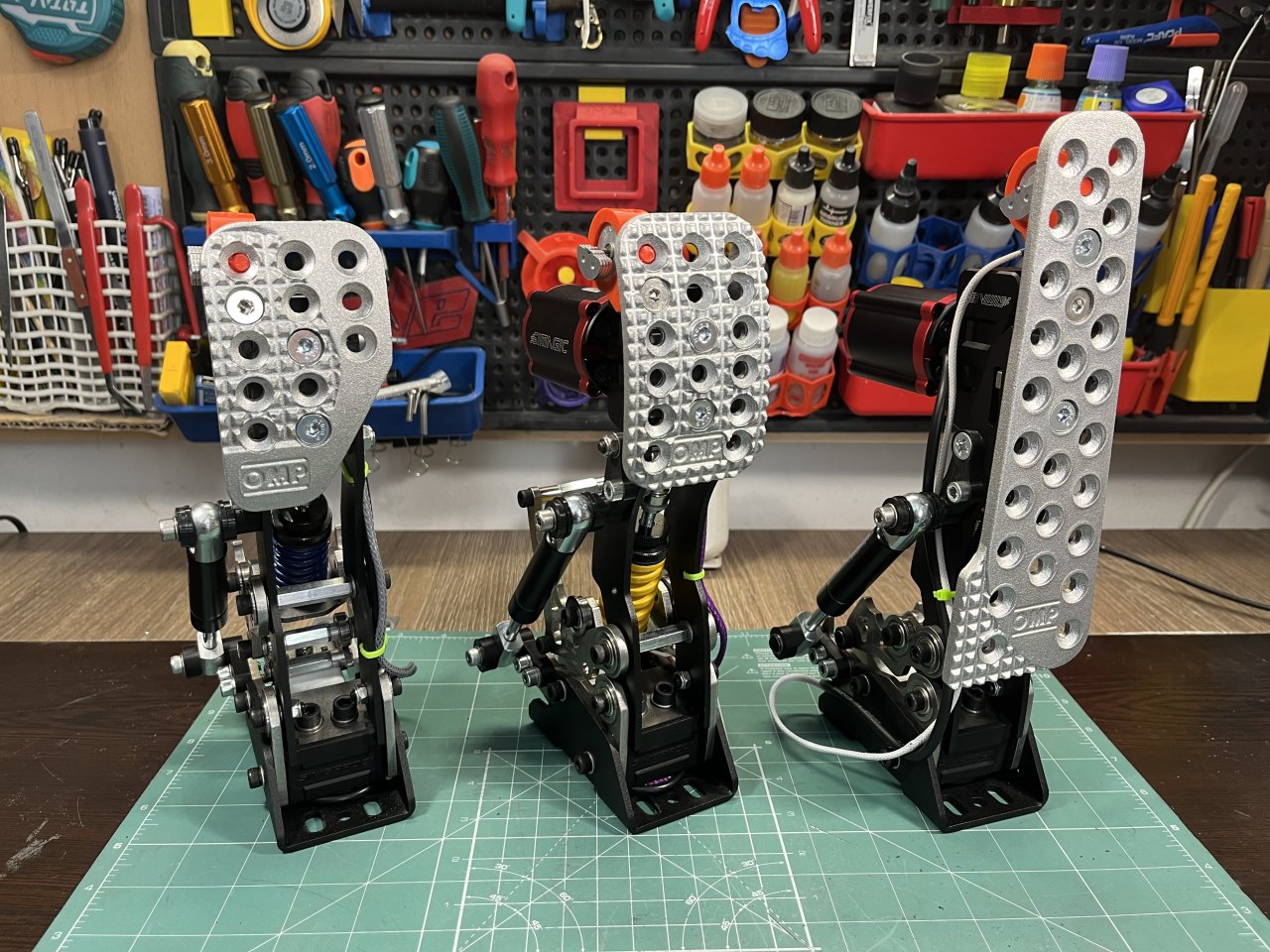

Simple backplate adapters to mount on the arms of Simgrade VX-Pro pedals and provide interface for OMP face plates - OA/1010, OA/1020, etc.

Pit Crew members get new designs 2–3 months early$5/mo →

✓ Download started

Thanks for building with us

Nothing yet? Check your browser's downloads, or close this and tap Download again.

Keep the free designs coming

84 designs on DIY-SIM are free. Patreon members keep the workshop running, and Pit Crew members get new designs 2–3 months early, the small designs included and 20% off the shop.

Join Pit Crew · $5/mo
57 DIY Pro Pedals MK-II

Ready for a Pro build?

57 DIY Pro Pedals MK-II

$39.00 →

Get the next design first

One email per new design, unsubscribe anytime. Privacy

Built one? Tag @diysimofficial on Instagram to get featured in community builds.

Overview

Simple backplate adapters to mount on the arms of Simgrade VX-Pro pedals and provide interface for OMP face plates - OA/1010, OA/1020, etc.

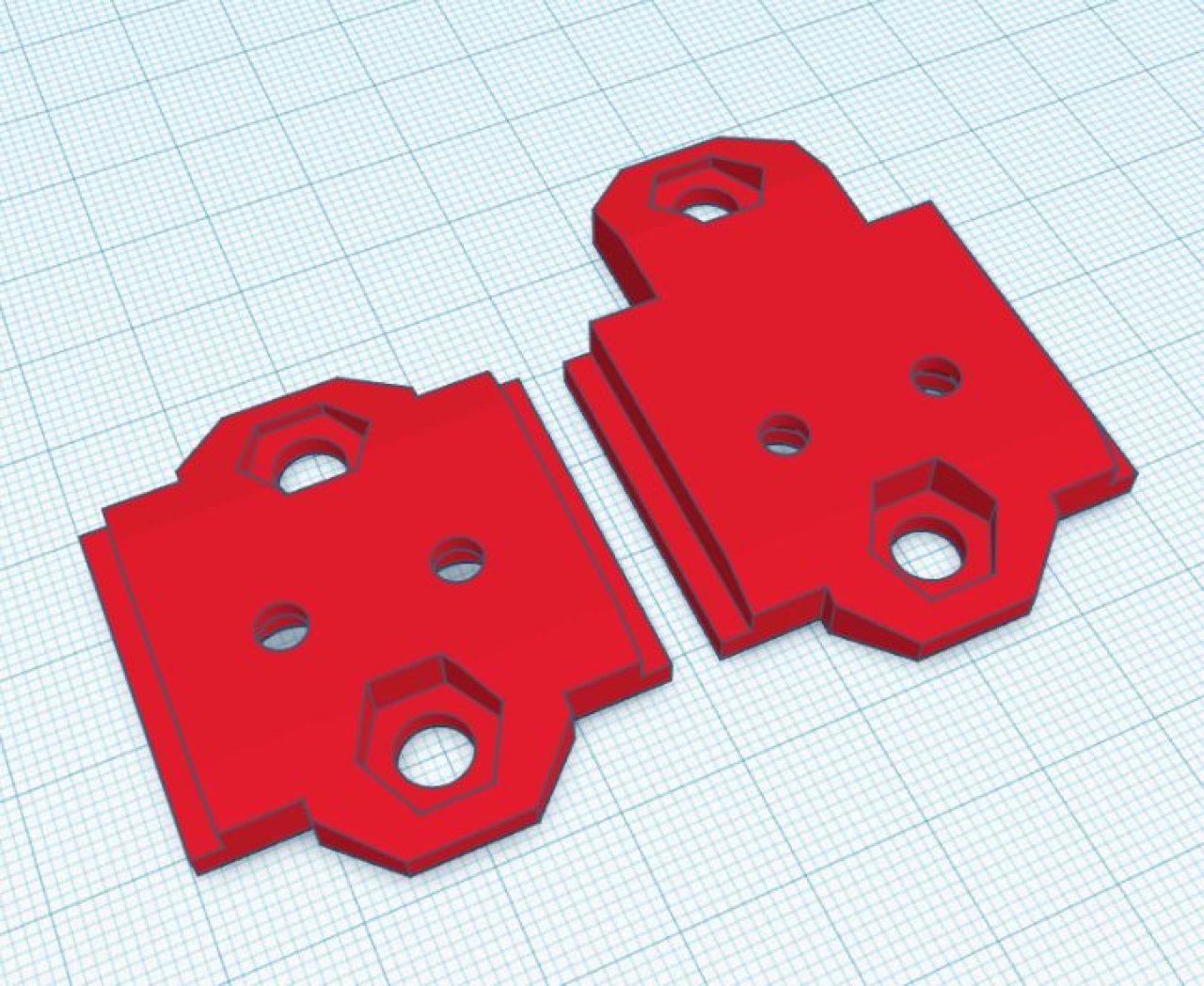

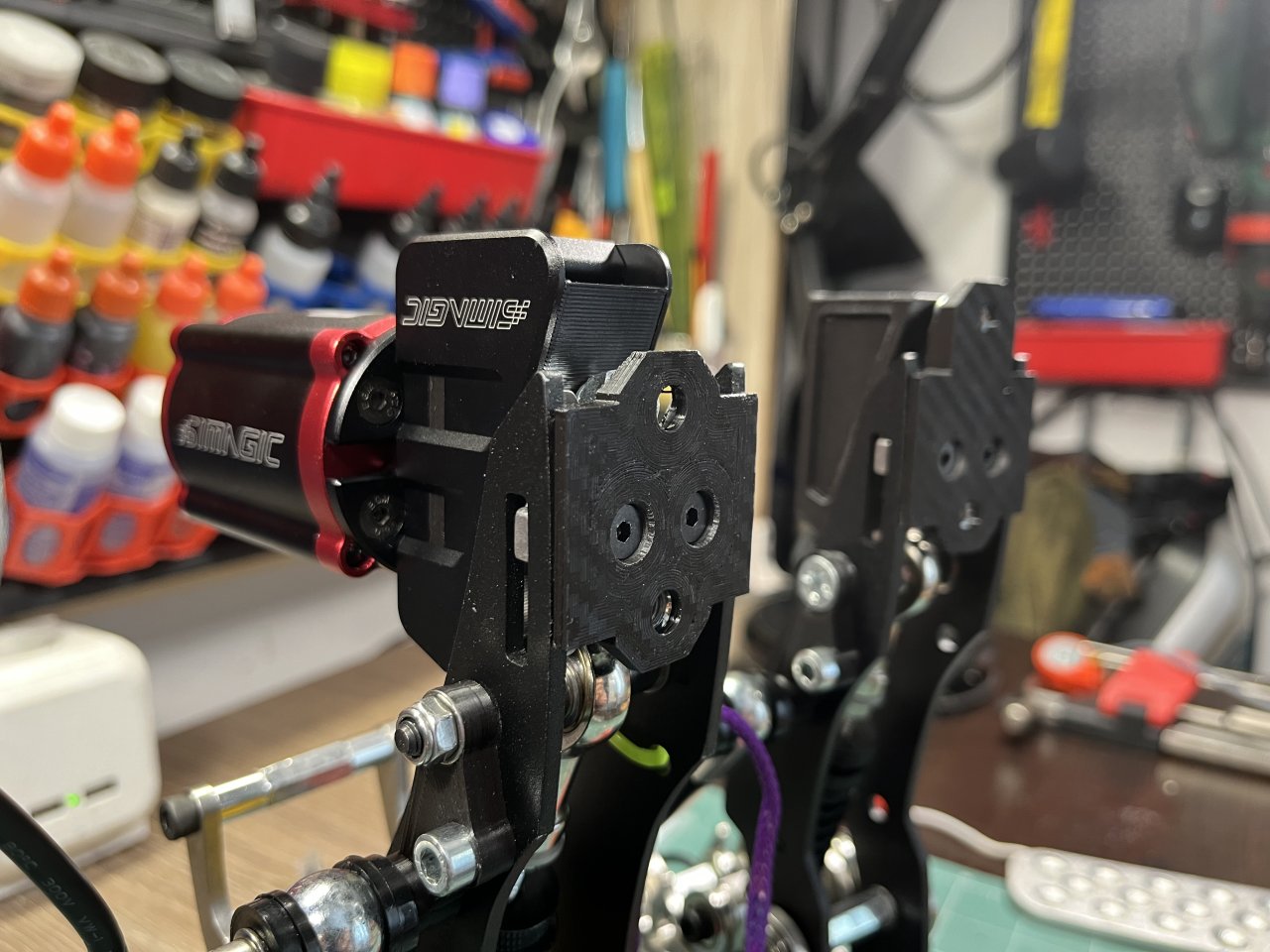

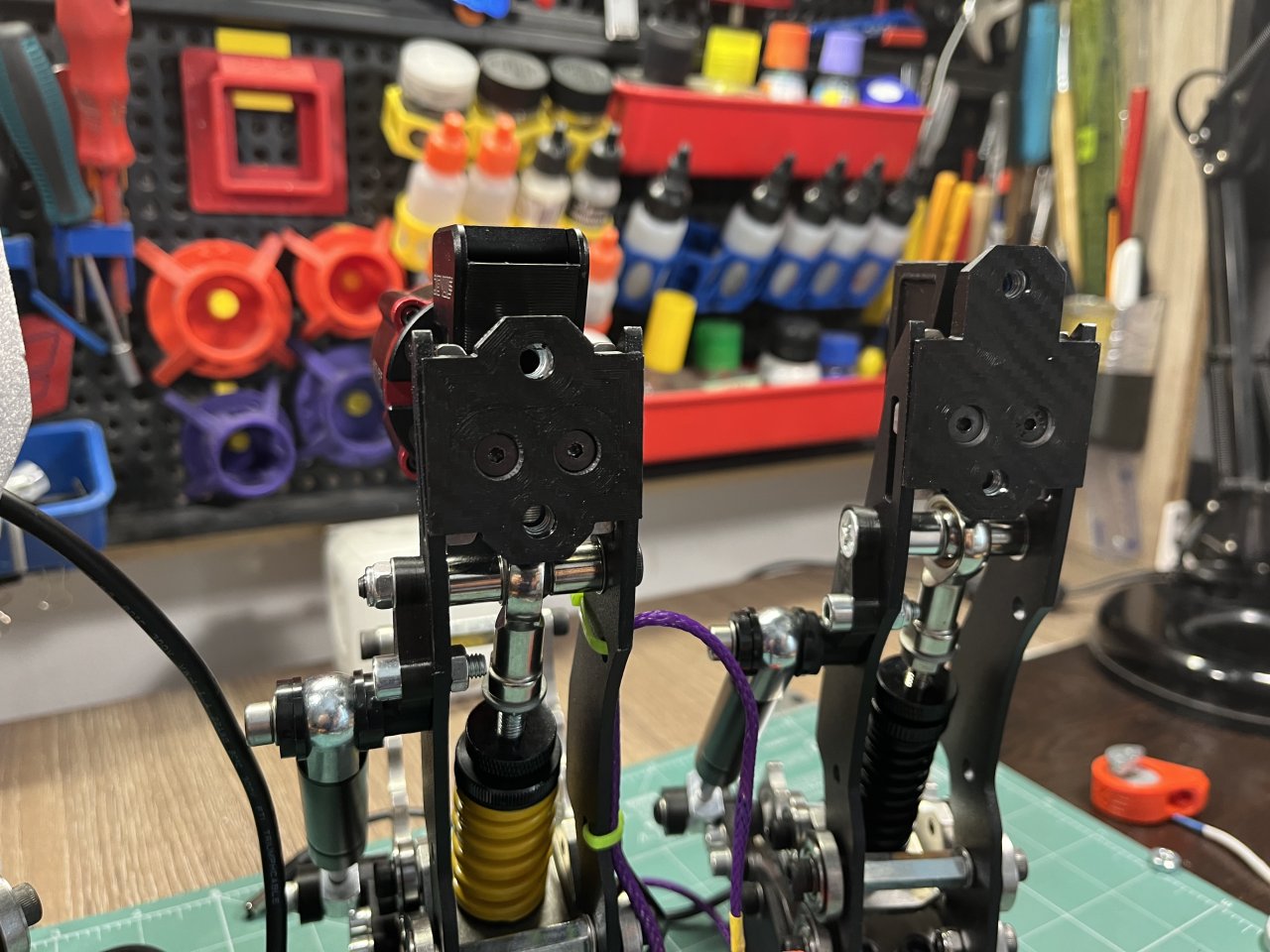

Used original mounting hardware both on pedal and face side (M6 screws come with the OMP pedals).

Throttle has different hole spacing so requires dedicated adapter plate.

The adapter plates are long in order to minimize tilt in pedal face, they need to be adjusted on the high side of the range to fit the bottom nut, but faces themselves can be mounted lower.

The originals were little wide and had to sand them, now are 0.4 narrower in order to fit properly inside pedal arm, but never tasted. Spacing is designed as such to create tension between backplate and pedal arm just like with the original pedal plates.

Build info

Assembly:

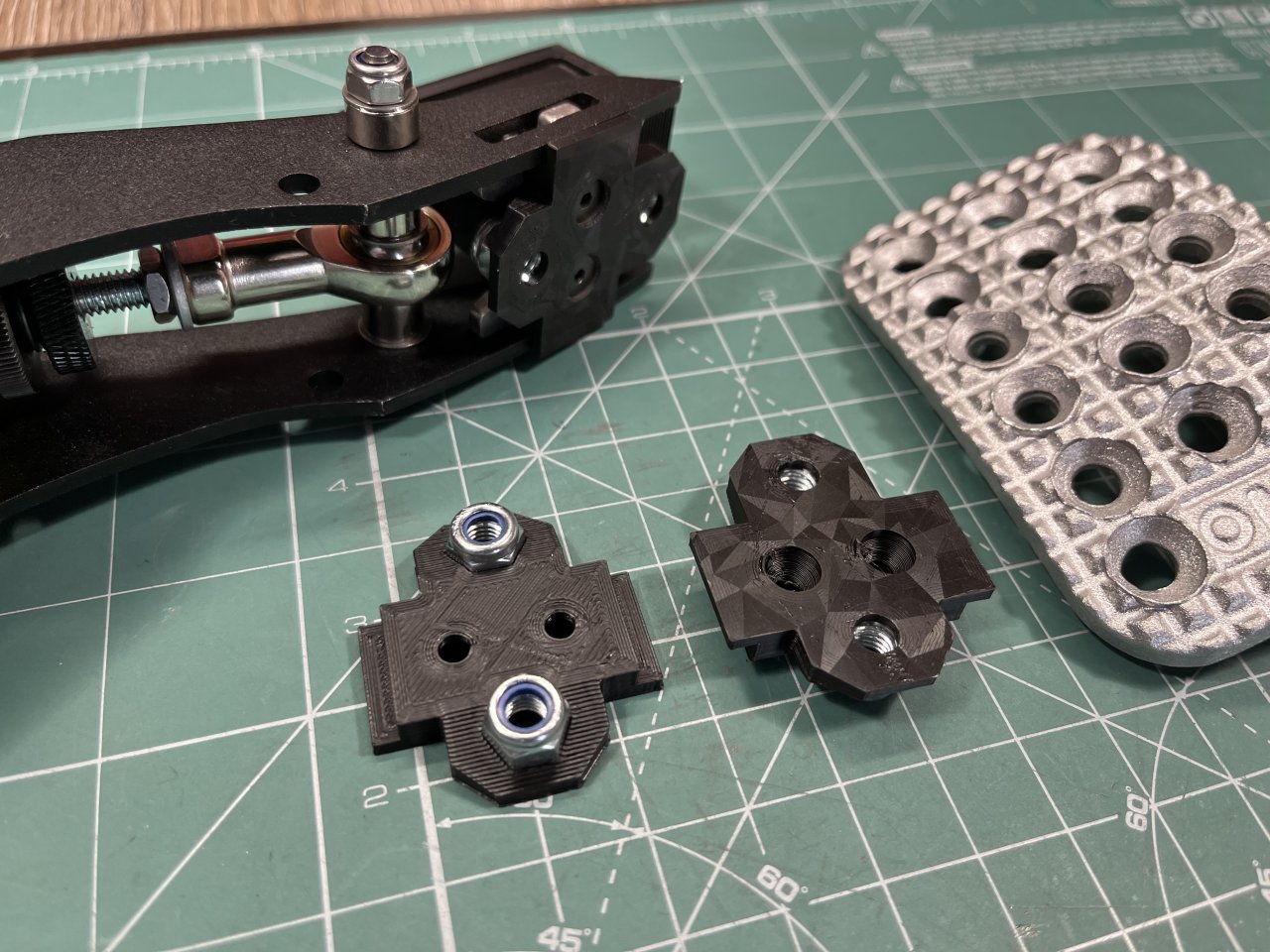

Insert M6 locking nut in adapter plate, mount them with original screws on pedal, screw in the faces on top

Print Settings:

No supports, 9 walls/layers, 40+% infill, mine are from PETG
